XZH Transformer DC Resistance Tester with Auto Current Range

Name: XZH Transformer DC Resistance Tester with Auto Current Range
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: এক্সএইচজেড 1010 এস
Price: 4,115.00 USD
Availability: InStock

পণ্যের বিবরণ:

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	XZH TEST
সাক্ষ্যদান:	CE/ISO
মডেল নম্বার:	এক্সএইচজেড 1010 এস

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

XZH TEST

সাক্ষ্যদান:

CE/ISO

মডেল নম্বার:

এক্সএইচজেড 1010 এস

বিশেষভাবে তুলে ধরা:

High Light

বিশেষভাবে তুলে ধরা:

Transformer DC resistance tester

Auto current range tester

Transformer tester with warranty

Trading Information

ন্যূনতম চাহিদার পরিমাণ:

1 ইউনিট

প্যাকেজিং বিবরণ:

কাঠের প্যাকেজিং

Delivery Time:

5-8 work days

পরিশোধের শর্ত:

টি/টি

পণ্যের বর্ণনা

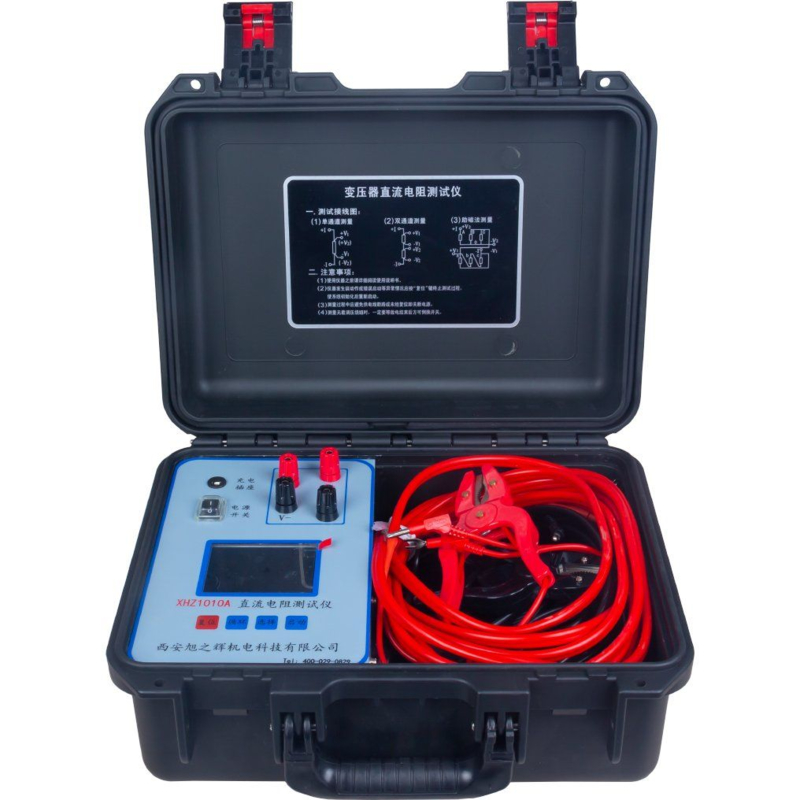

XZH TEST Transformer DC Resistance Tester Resistance Meter

Transformer DC resistance testing is an essential procedure in transformer manufacturing for semi-finished and finished products, as well as for factory tests, installation, overhaul, tap changer adjustments, handover tests, and preventive maintenance in the power sector.

This test helps verify:

Winding joint welding quality
Potential short-circuits between winding turns
Voltage tap switch contact quality
Alignment between tap changer actual position and indicated position
Lead wire integrity and potential breaks

The XHZ1010S Transformer DC Resistance Tester features advanced power supply technology, offering compact size, light weight, high output current, excellent repeatability, strong anti-interference capability, and comprehensive protection functions. The instrument is controlled by a high-speed microcontroller with full automation, including automatic discharge and discharge alarm functions.

Key Features:

High test accuracy with simple operation for rapid transformer DC resistance measurement
320×240 dot matrix 65K true color LCD with excellent visibility in strong light
Built-in power-off storage for 1000 test data sets with instant recall capability

Technical Specifications

Parameter	Specification	Notes
Test Current	AUTO, <20mA, 40mA, 200mA, 1A, 5A, 10A
Measuring Range & Accuracy	0.5mΩ~0.2Ω (10A) 1mΩ-3Ω (3A) 5mΩ-6Ω (1A) 100mΩ-40Ω (200mA) 1Ω-200Ω (40mA) 100Ω-20KΩ (<5mA)	Accuracy: ±(0.2%+2 digits)
Minimum Resolution	0.1μΩ
Display	LCD	4-digit resistance display
Data Storage	1000 groups
Operating Environment	Temperature: 0°C~40°C Humidity: <90% RH (non-condensing)
Power Supply	Built-in lithium battery	Includes external charger
Maximum Power Consumption	50W
Dimensions	360×290×170 mm
Weight	6.25 kg (complete set)
