Professional Surge Arrester Tester for Circuit Breakers

Name: Professional Surge Arrester Tester for Circuit Breakers
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJS401
Price: 7,970.00 USD
Availability: InStock

পণ্যের বিবরণ:

উৎপত্তি স্থল:	জিয়ান শানসি চীন
পরিচিতিমুলক নাম:	XZH TEST
সাক্ষ্যদান:	ISO CE
মডেল নম্বার:	XHJS401

বিস্তারিত তথ্য

উৎপত্তি স্থল:

জিয়ান শানসি চীন

পরিচিতিমুলক নাম:

XZH TEST

সাক্ষ্যদান:

ISO CE

মডেল নম্বার:

XHJS401

আউটপুট ভোল্টেজ:

800～1000V

বিশেষভাবে তুলে ধরা:

High Light

বিশেষভাবে তুলে ধরা:

Professional Surge Arrester Tester

Counter Operation Circuit Breaker Analyzer

Surge Arrester Counter Operation Tester

Trading Information

ন্যূনতম চাহিদার পরিমাণ:

1 সেট

প্যাকেজিং বিবরণ:

কাঠের প্যাকেজিং

ডেলিভারি সময়:

5-8 কাজের দিন

পরিশোধের শর্ত:

টি/টি

যোগানের ক্ষমতা:

3000 ইউনিট/বছর

পণ্যের বর্ণনা

Product Overview

In order to address the specific requirements of power users, our company's technical staff have developed the XHJS401 Arrester Counter Operation Tester. This tester boasts a sleek appearance and is convenient to carry and use, making it an ideal replacement for the old, heavy testing instruments and inefficient testing methods.

Performance Features

The power switch is installed between the instrument body and its head. Rotating it 90 degrees in any direction until a "click" is heard will turn on the power, and rotating it back will turn off the power.

Before using the instrument, insert the ground wire into the tail and make a firm connection. Adjust the length of the telescopic conductive rod on the head to fit the height of the counter before turning on the power.

Once the power is activated, the green light will light up. Wait for the red light to illuminate (roughly 3 to 5 seconds), and then you can start testing the arrester counter using the telescopic conductive rod on the head.

The tester allows for repeated testing without the need to turn off the power, but the conductive rod must be separated from the test sample each time it charges.

Caution: After finishing the test, first turn off the power supply. Only after discharging the head conductive rod to the tail ground wire can you put the instrument away. The instrument uses four No. 1 batteries for power supply, which can support more than 2000 discharge tests. If the battery is low, the charging time will be extended, and it should be replaced in a timely manner.

Technical Specifications

☆ Dimensions: Main Body: φ36×375mm; Head: φ50×100mm

☆ Weight: 780g

☆ Power Supply: DC 6V (four size 1 batteries)

☆ Output Voltage: 800～1000V

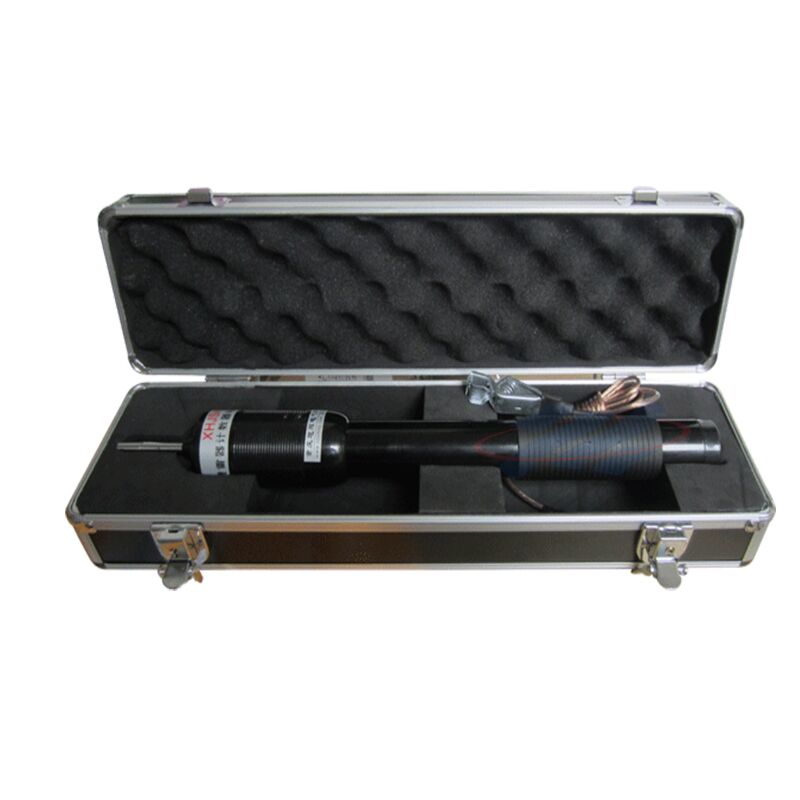

Professional Surge Arrester Tester for Circuit Breakers 0
