Power Cable Identification Instrument Cable Fault Identification Testing Equipment

Name: Power Cable Identification Instrument Cable Fault Identification Testing Equipment
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhsb505a
Price: 1,050.00 USD
Availability: InStock

পণ্যের বিবরণ:

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	XZH Test
সাক্ষ্যদান:	CE/ISO
মডেল নম্বার:	Xhsb505a

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

XZH Test

সাক্ষ্যদান:

CE/ISO

মডেল নম্বার:

Xhsb505a

বিশেষভাবে তুলে ধরা:

High Light

বিশেষভাবে তুলে ধরা:

cable fault locator testing equipment

power cable identification instrument

cable fault identification tool

Trading Information

ন্যূনতম চাহিদার পরিমাণ:

1 ইউনিট

প্যাকেজিং বিবরণ:

কাঠের বাক্স

ডেলিভারি সময়:

5-8 কাজের দিন

পরিশোধের শর্ত:

টি/টি

যোগানের ক্ষমতা:

2000 ইউনিট/বছর

পণ্যের বর্ণনা

XHSB505A

Basic Info.

Model NO.

XHSB505A

Connectors

Coaxial BNC

Test Mode

Instant Test

Usage

Audio Cable Tester

Test Region

Unformed

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Black

Transport Package

Wooden Cases

Specification

64*53*35

Trademark

XZH TEST

Origin

Shaanxi

Product Description

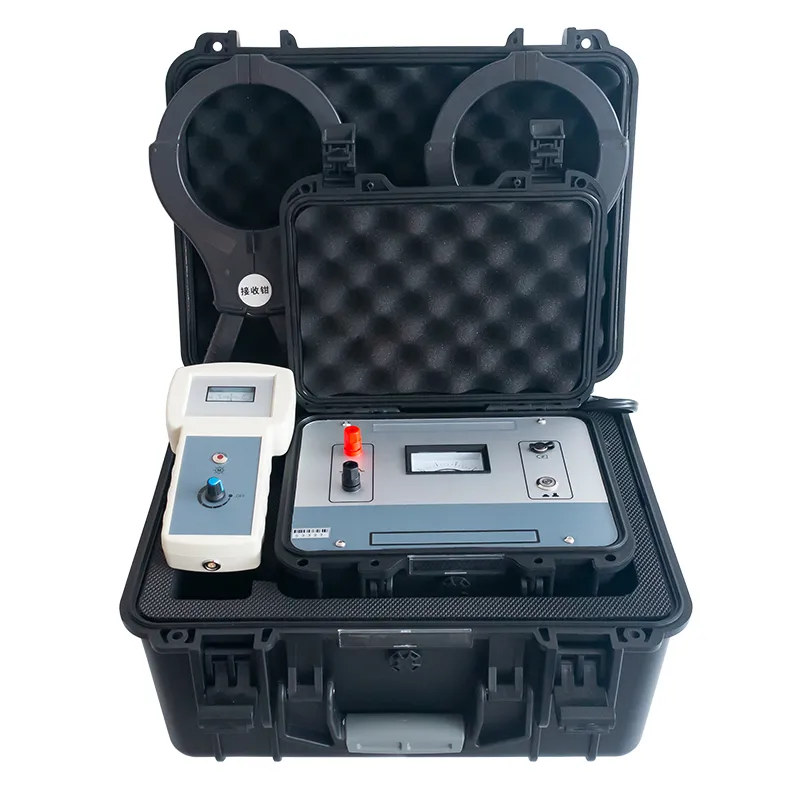

Power Cable Identification Instrument Cable Fault Identification Testing Equipment 0

XHSB505A cable identifier adopts variable frequency pulse power supply and uses the principle of electromagnetic induction to accurately identify cables that are unlive or in operation. There are two functions for measuring voltage, current and frequency, and there are two output methods: direct connection method and coupling method.

Identification of non-powered cable: The transmitter mainly generates a special pulse signal. This signal is added to the cable to be identified through a connecting line. According to the principle of electromagnetic induction, an induction signal consistent with the law of the transmitted signal will inevitably be generated along the cable. At the test site, a highly sensitive receiving clamp plus a handheld receiver is used to detect all cables on the site. According to the indication of the handheld receiver, the cable to which the signal is added (i.e., the non-powered cable to be identified) can be accurately found.
Identification of powered cable: The transmitter mainly generates a special pulse signal. This signal is added to a point of the powered cable to be identified through a special transmitting clamp. According to the principle of electromagnetic induction, an induction signal consistent with the law of the transmitted signal will inevitably be generated along the cable. At the test site, a highly sensitive receiving clamp plus a handheld receiver is used to detect all cables on the site. According to the indication of the handheld receiver, the cable to which the signal is added (i.e., the powered cable to be identified) can be accurately found.

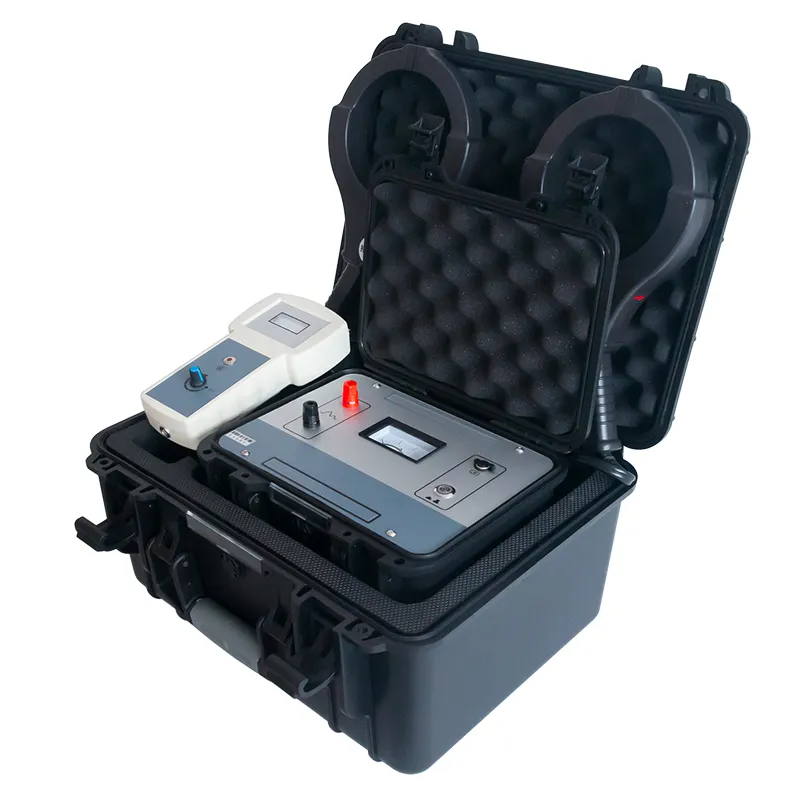

Power Cable Identification Instrument Cable Fault Identification Testing Equipment 1

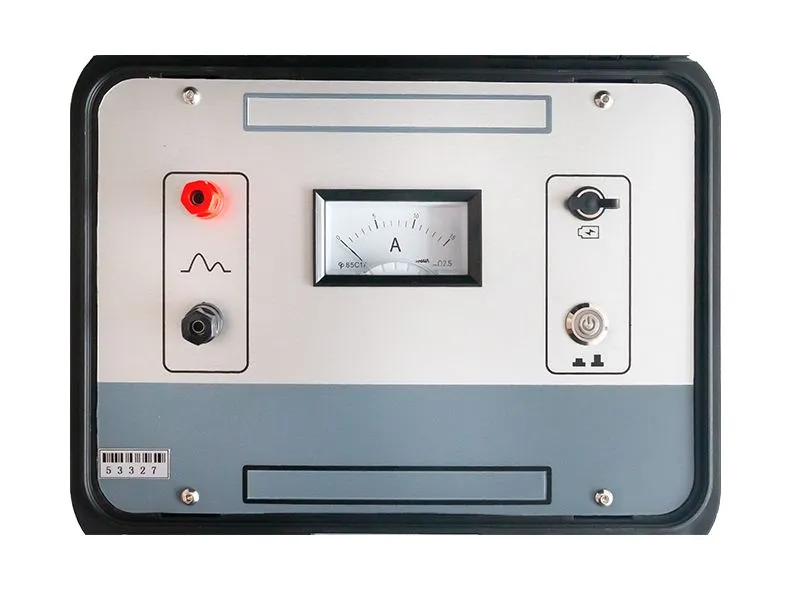

Power Cable Identification Instrument Cable Fault Identification Testing Equipment 2

Parameters:
★Recognition method judge by the swing direction of the pointer
★Jaw Φ125mm
★Output voltage ±300V
★Pulse current 0~15A
★Instantaneous power 180W
★Power supply 12VDC lithium battery for signal generator, AA battery for handheld receiver.

*Accurate identification
*Large identification jaws suitable for all kinds of cables
*Extremely simple operation
*Clear and intuitive instructions
*Main and auxiliary parts are portable and beautiful
*The receiver has adjustable signal strength
*Both live and non-live cables can be tested
*Small and portable, light weight
