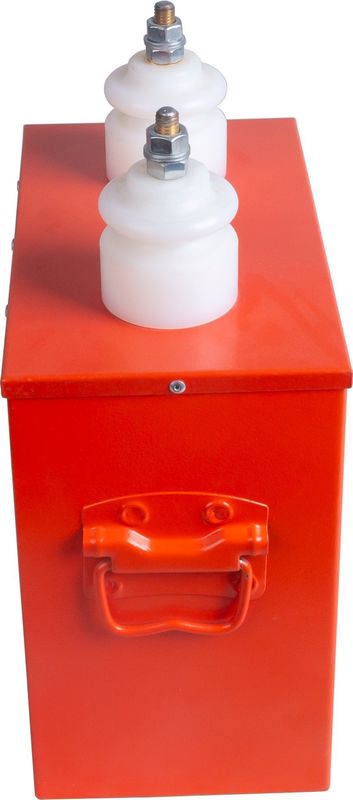

35kv 6UF Impulse Power Accumulating Capacitor

Name: 35kv 6UF Impulse Power Accumulating Capacitor
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-6/35
Price: 1,050.00 USD
Availability: InStock

পণ্যের বিবরণ:

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	XZH Test
সাক্ষ্যদান:	CE/ISO
মডেল নম্বার:	XHCC-6/35

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

XZH Test

সাক্ষ্যদান:

CE/ISO

মডেল নম্বার:

XHCC-6/35

বিশেষভাবে তুলে ধরা:

High Light

বিশেষভাবে তুলে ধরা:

35kv impulse power capacitor

6UF accumulating capacitor

cable fault locator capacitor

Trading Information

ন্যূনতম চাহিদার পরিমাণ:

1 ইউনিট

প্যাকেজিং বিবরণ:

কাঠের বাক্স

ডেলিভারি সময়:

5-8 কাজের দিন

পরিশোধের শর্ত:

টি/টি

যোগানের ক্ষমতা:

2000 ইউনিট/বছর

পণ্যের বর্ণনা

XHCC-6/35

Model NO.

XHCC-6/35

Weight

27kg

Transport Package

Wooden Case

Specification

28*24*36

Trademark

XZH TEST

Origin

Shaanxi

Within a precisely defined time interval, the pulse capacitor effectively accumulates the charging energy provided by a low-power power supply. At a predetermined moment of need, it swiftly releases this accumulated energy over an exceedingly brief period. The result is the formation of a robust impact current and a significant amount of power. These characteristics render the pulse capacitor highly valuable in specialized applications, including high-voltage impulse discharge tests, high-energy physics experiments, oscillation circuits, and geological prospecting endeavors.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Model Description
Example: XHCC-4/35 pulse capacitor
1. 4--Rated capacitance 4uF
2. 35--Rated voltage level 35kV

N.o	model	Rated voltage	Rated capacity	Interpolar withstand voltage	Application
01	3/2000	3kV	2000uF	3.6kV	Impulse discharge
02	6.5/100	6.5kV	100uF	3.6kV	Impulse discharge
03	6.5/200	6.5kV	200uF	7.5 kV	Impulse discharge
04	6.5/500	6.5kV	500uF	7.5 kV	Impulse discharge
05	15/8	15kV	8uF	17.5 kV	Impulse discharge
06	15/8*2	15kV	8uF	17.5 kV	Impulse discharge
07	15/8*3	30kV	2uF	34.5 kV	Impulse discharge
08	35/2	35kV	2uF	39.5 kV	Impulse discharge
09	35/4	35kV	4uF	39.5 kV	Impulse discharge
10	30/4	30kV	4uF	34.5 kV	Impulse discharge
11	40/4	40kV	4uF	45 kV	Impulse discharge
12	40/6	40kV	6uF	45 kV	Impulse discharge
13	100/1	100kV	1uF	110 kV	Impulse discharge

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
